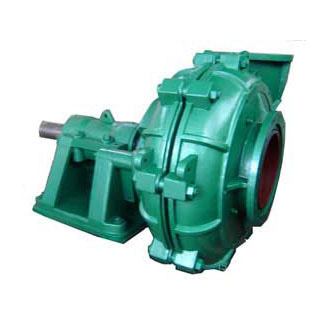

400S-CL slurry pump

  • Materail :High-chrome alloy
  • Service Life :1.5-2.5 times of ordinary product
  • Max. Power and Efficiey :560 kW, 85%
  • Delivery Time :7-30 days
  • Interchangeable Type :400S-L
Service online

+86-15176837952

[email protected]

Description



The CL(R) series slurry pumps are cantilevered, horizontal, centrifugal, slurry pumps. They are suitable for delivering less abrasive, low dense slurry in the metallurgical, mining, coal and construction material industry. The shaft seal is adopted both gland seal and centrifugal seal.
The CL(R) series slurry pumps have a high rate of revolution and small volume saving floor area. The frame plates have changeable, wear-resistant metal liners or rubber liners upon request and the impellers are made of wear-resistant metal or rubber. The discharge branch can be oriented to any of the eight different positions for installation and application upon request.



Technical Parameters

CL Series Slurry Pump Performance Chart

Pump
 Model

Allowable


     Max. Power

Clear Water Performance


Capacity  Q

Head


      H(m)

Speed


   n(r/min)

Max.Eff.


     η%

NPSH
           (m)

Impeller


            Dia.

m3/h

l/s

50B-CL

15

11.5-65

3.2-18

8.5-46

1400-2800

62

2.5-5.5

190

75C-CL

30

21.6-136.8

6-38

7-46.4

900-2400

57

3-6

229

100D-CL

60

46.8-324

13-90

7-48.30

800-1800

64

2.5-6

305

150E-CL

120

126-568.8

35-158

10.5-51.8

800-1500

60

2.5-6

381

300S-CL

560

568-2538

130-705

8-60

400-950

79

2-10

653

350S-CL

560

650-2800

180-780

10-59

400-840

81

3-10

736

400S-CL

560

756-3312

210-920

7-37.5

300-600

85

2-8

825

450ST-CL

560

1080-4356

300-1210

9-40

300-550

87

3-10

933

550TU-CL

1200

1980-7920

560-2200

10-50

250-475

86

4-10

1213
