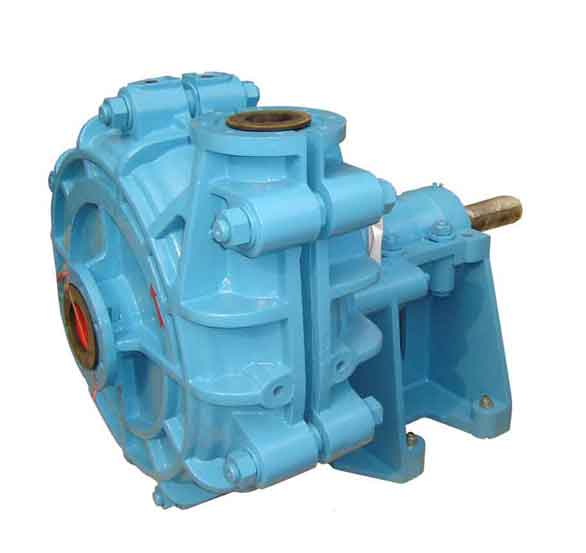

6/4S-CHH slurry pump

  • Materail :High-chrome alloy
  • Service Life :1.5-2.5 times of ordinary product
  • Max. Power and Efficiey :560 kW, 64%
  • Delivery Time :7-30 days
  • Interchangeable Type :6/4S-HH
Service online

+86-15176837952

[email protected]

Description



Type CHH slurry pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed for the handling of highly abrasive, high density slurries in the metallurgical, mining, coal, power generation, construction material and other industry. The pumps of this type may also be installed in multistage series.

The frame plate liner and impeller for CHH pump are made of wear-resistant metal. The shaft seals for the CHH series may choose gland seal or expeller seal. The discharge branch can be oriented to any of the eight positions to suit installations and applications.



Technical Parameters

CHH Series Slurry Pump Performance Chart

Pump

 Model

Allowable
Max. Power		                                      Clear Water Performance
Capacity  Q

Head
H(m)

Speed
 n(r/min)		Max.Eff.
η%
NPSH
           (m)		Impeller
           Dia.
m3/hl/s
1.5/1C-CHH3016.2-34.24.5-9.525-921400-2200202-5.5330
3/2D-CHH6068.4-136.819-3825-87850-1400473-7.5457
4/3E-CHH120126-25235-7012-97600-1400502-5508
6/4S-CHH560324-72090-20030-118600-1000643-8711
8/6S-CHH560468-1008130-28020-94500-1000654-12711
Note:
     1."M",alloy wear-resistant material;"R",rubber material.
     2.Quantity range recommended:50%Q’≤Q≤110%Q'(Q' Appropriate to capacity at highest efficiency point).
     3.NPSH: appropriate to point Q recommended at highest speed.
     4.Due to the space, we offer the technical datas of part of the pump models. If necessary, we would offer you all.
