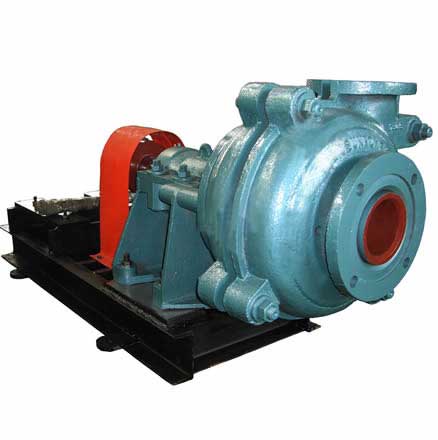

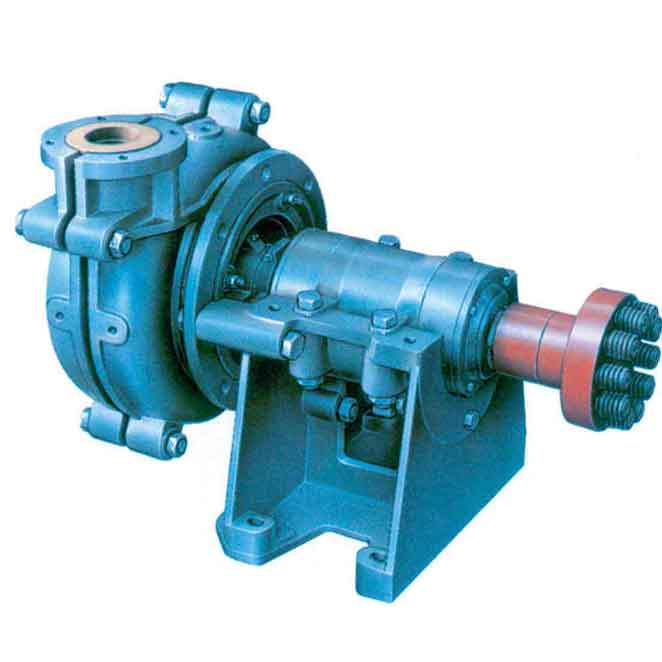

12/10ST-CAH slurry pump

  • Materail :High-chrome alloy
  • Service Life :1.5-2.5 times of ordinary product
  • Max. Power and Efficiey :560 kW, 82%
  • Delivery Time :7-30 days
  • Interchangeable Type :12/10ST-AH
Service online

+86-15176837952

[email protected]

Description



The frame plates for type CAH pumps have replaceable wear-resistant metal liners. The impellers are made of wear-resistant metal. The frame plate liner and impeller for CAH pump are adoptable of hard metal only.

Bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily, being removed completely when being repaired. Bearing assembly use grease lubrication.

The shaft seal could use the packing seal, expeller seal and mechanical seal. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

Wide performance, good NPSH and high efficiency. The pump of this type may be installed in multistage series to meet the delivery for long distance.




Technical Parameters





CAH Series Slurry Pump Performance Chart

Pump
 Model

Allowable
Max. Power

Clear Water Performance


Capacity  Q

Head
           H(m)

Speed
           n(r/min)

Max.Eff.
η%

NPSH
           (m)

Impeller
  Dia.

m3/h

l/s


1.5/1B-CAH

15

12.6-28.8

3.5-8

6-68

1200-3800

40

2-4

152

2/1.5B-CAH

15

32.4-72

9-20

6-58

1200-3200

45

3.5-8

184

3/2C-CAH

30

39.6-86.4

11-24

12-64

1300-2700

55

4-6

214

4/3C-CAH

30

86.4-198

24-55

9-52

1000-2200

71

4-6

245

4/3D-CAH

60

6/4D-CAH

60

162-360

45-100

12-56

800-1550

65

5-8

365

6/4E-CAH

120

8/6E-CAH

120

360-828

100-230

10-61

500-1140

72

2-9

510

8/6R-CAH

300

10/8ST-CAH

560

612-1368

170-380

11-61

400-850

71

4-10

686

12/10ST-CAH

560

936-1980

260-550

7-68

300-800

82

6

762

14/12ST-CAH

560

1260-2772

350-770

13-63

300-600

77

3-10

965

16/14UT-CAH

1200

1368-3060

380-850

11-63

250-550

79

4-10

1067
